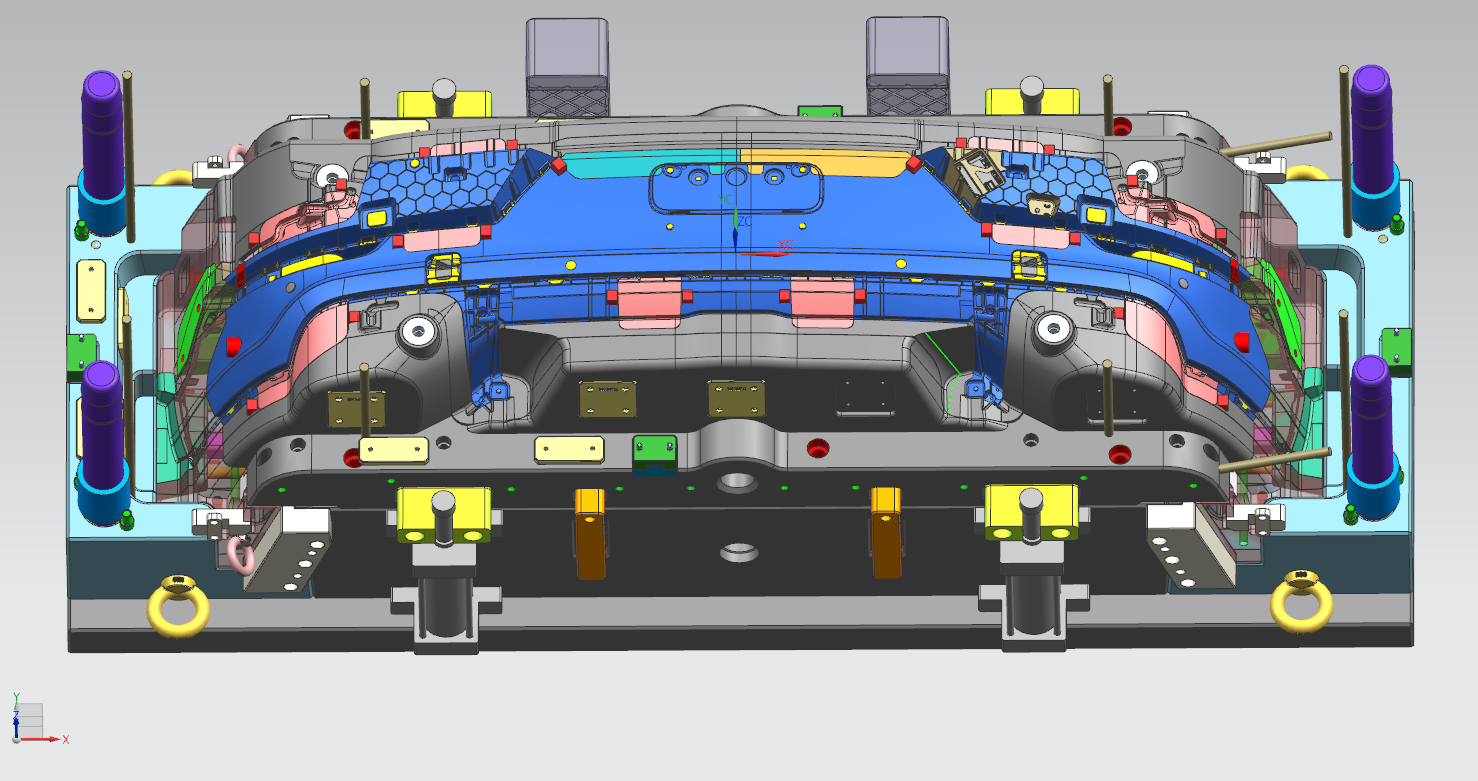

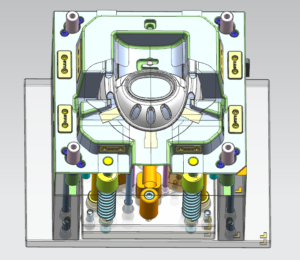

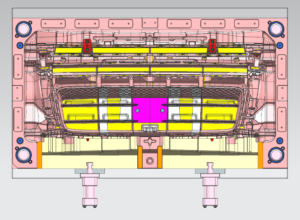

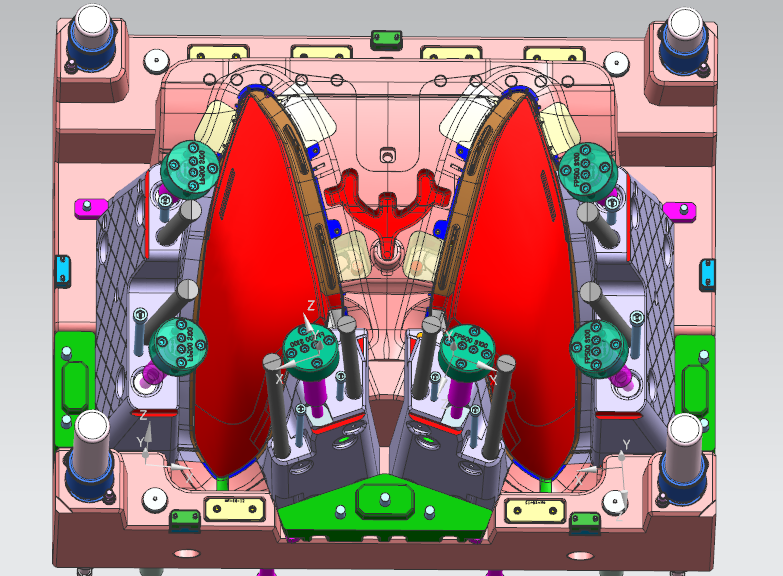

Mold Structural Design Solutions

Client Pain Points:

· Multiple mold trials still fail to yield satisfactory results, each revision adding cost.
· Mold design reveals too late that the product design is not manufacturable.
· The mold works, but cycle times are long and yield rates are low.

Our Approach:

We perform value engineering analysis before manufacturing begins, resolving issues at the drawing stage.

· CAE Mold Flow Analysis Upfront: Fill, cooling, warpage, and air trap analyses are conducted prior to structural design to predict molding risks before the first trial.
· Collaborative Product Optimization: We assist clients in optimizing draft angles, wall thicknesses, and rib layouts to simplify mold construction without compromising product functionality.
· Comparative Mold Structure Proposals: We provide 2–3 structural options for the same product, detailing differences in manufacturing cost, cycle time, and maintenance for informed decision-making.
· Experience Database: All designs are backed by historical trial data from similar products, ensuring practical, real-world reliability.
